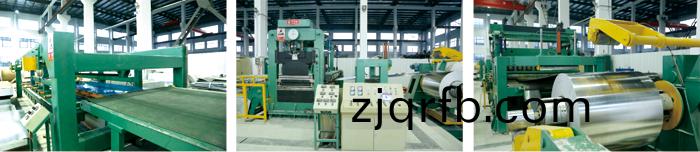

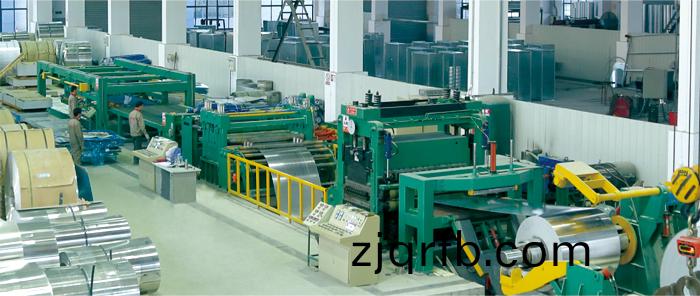

6-high Automatic cut to length machine line for aluminum coil
This production line is mainly used for uncoiling, ?leveling and shearing of aluminum girth sheets with edge-cutting function, ?which is?necessary for the leveling of aluminum screen wall, ?and also specially suitable for cold sheets. The mirror surface applies high?precision leveling of stainless steel.

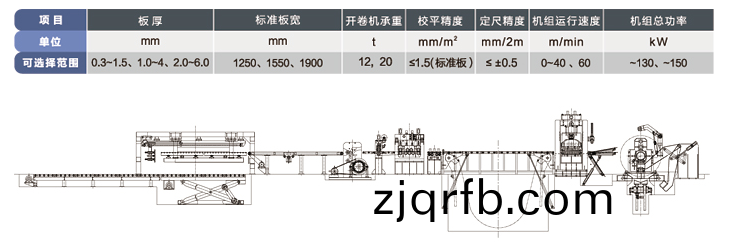

Standard allocation consists of charging wagon, ?uncoiler, ?supporting plate pressure ram device, ?material feeding device, ?pre-calibration, ?storage bin, ?limiter, ?6high leveling machine, ?film device, ?shearing machine, ?transmission platform, ?pneumatic layout support, ?hydraulic lift platform, ?discharging working platform, ?hydraulic system and electric control system.
The main component of hydraulic system in this production line applies high precision component parts from Taiwan. The length system is controlled by positioning servo system from Japanese Yaskawa or German Lenze company. The electric control is controlled full line by PLC program controller and touch screen. It has such characteristics as high automaticity, ?good leveling quality, ?high shearing precision, ?high production efficiency, ?steady and reliable performance and easy operation and maintenance.
